SU316 is engineered for long-term underwater applications with high corrosion resistance and excellent thermal management. Ideal for pool lighting, water features, and architectural accent lighting.
- 316 Stainless Steel Housing
- IP68 Waterproof, fully sealed
- Available in 12VDC or 24VDC
- High efficiency LED with uniform light output
Unit: mm
| Model Number | SU316-200 |
| Input Voltage | 12V DC / 24V DC Safe Low Voltage |
| Rated Power | 18W / 24W / 36W Options |
| Luminous Efficacy | 110 lm/W |
| Color Temperature (CCT) | 2700K / 3000K / 4000K / RGBW |
| Color Rendering Index (CRI) | Ra > 85 (Ra > 90 optional) |
| Ingress Protection (IP) | IP68 (Hermetically Sealed Submersible) |
| Impact Resistance | IK08 Tempered Safety Glass |
| Housing Material | Marine-Grade AISI 316 Stainless Steel |
| Operating Temperature | -20°C to +45°C |
| Beam Angles | 15° / 25° / 45° / 60° / 120° Wide Flood |
| Center Beam Candela (15°) | 12,400 cd |
| Center Beam Candela (30°) | 5,800 cd |
| Lumen Maintenance (L70) | > 50,000 Hours @ 25°C Water Temp |
| Optical Lens Material | High Precision PMMA Optical Grade |
| Recessed Niche Kit | 316 Stainless Steel Mounting Sleeve (Included) |
| Submersible Cable | 3-meter H07RN-F Waterproof Cable standard |
| Driver / Transformer | IP67 24V DC Constant Voltage Power Supply |
| Smart Controls | DMX512 Decoder / 0-10V Dimming Module compatible |
UNDERWATER LIGHT
SU316
Square Underwater Light
IP68
Waterproof
316
Stainless Steel
12/24VDC
Low Voltage Safe & Reliable
IK08
Impact Resistant

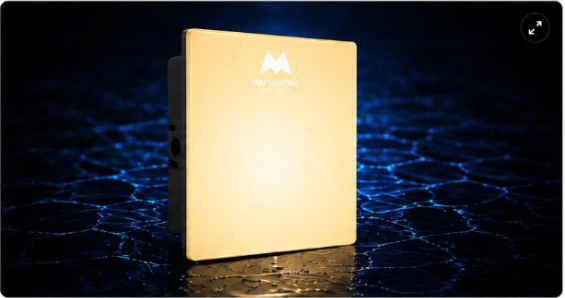

SU316 is a premium square underwater light designed for pools, fountains, and landscape water features. Made of 316 stainless steel with IP68 protection, it delivers reliable performance and elegant illumination in demanding environments.
